Several months ago I was approached by two former students (Evan Schlosser and Robie Rowland) at the New England Institute of Art to help them to design a studio in a rented space in Allston.  They introduced me to their partner Arjun Ray and I started consulting with them.  The space was being converted into rehearsal  spaces and construction was already underway in the space to convert it from an office building into a rehearsal room.  We would convert that into a fully-functional professional studio.

After measuring the space and investigating the existing construction, I came up with a design that would isolate the studio from their 3 neighbors as much as possible and that would provide them with 2 large and functional live rooms and  a good sized and well proportioned control room.  My initial design follows but had to be altered some to address problems such as sprinkler and HVAC locations.

The Original Design for Con-Fusion Entertainment's Studio

One of the things that is very nice about the space is the two large windows allowing natural light into the studio’s control room.  I designed all of the spaces to avoid parallel wall to help prevent problems with standing waves and the accumulation of low frequencies in less-than-ideal locations.  The rectangular space is broken up in such a way that the control room gets larger the further away from the mix position.  Both the live rooms have site-lines to the control room as well.  The control room, where the most time will be spent, is the largest room and will allow for comfortable seating for producers, engineers and their clients.

Here are some of the early construction photos.  In the pictures are Arjun Ray, Robie Rowland and Evan Schlosser (The 3 partners of Con-Fusion Entertainment), and Mike, Rick and Robie the Elder.  I tried to create some order to the photos to create a narrative.  At this point, nearly all of the metal studs are in place and drywall is starting to be hung.

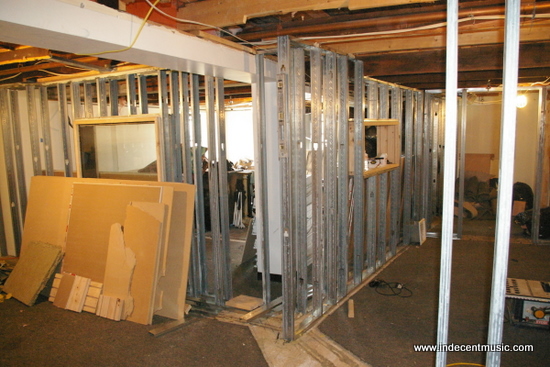

Looking at control room from inside the large live room

View out of the control room door

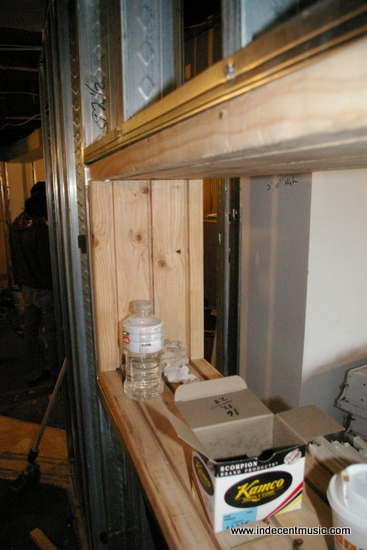

View into the corner of the control room

View out the main control room window

The wall makes a slight job at the studio entrance

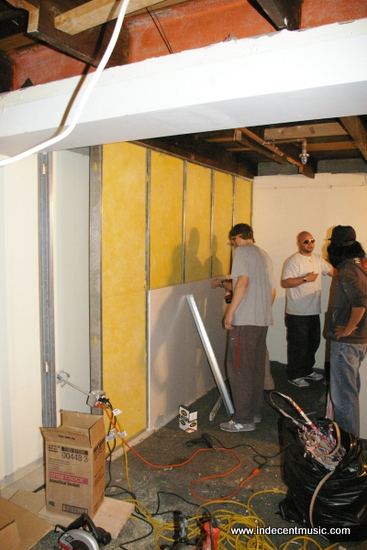

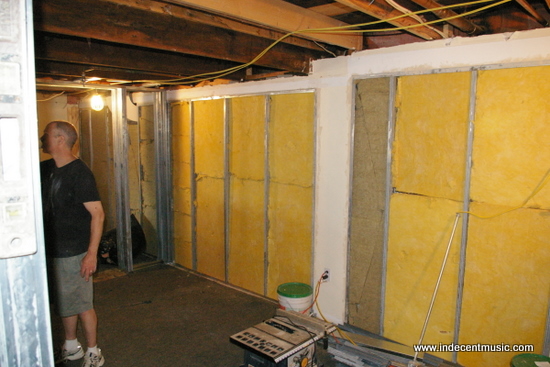

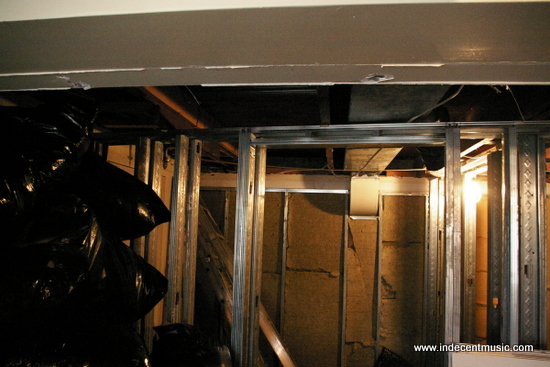

Exterior walls filled with 703 fiberglass insulation

Detail of the double wall construction

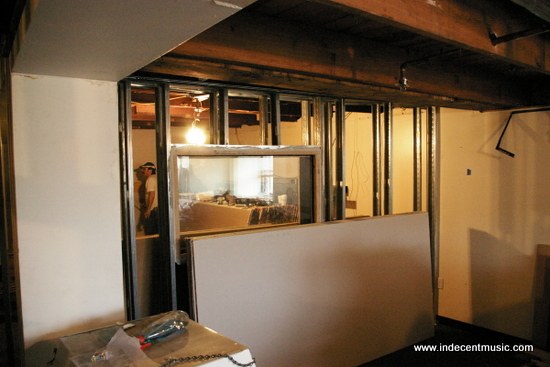

3 Layer studio window in progress

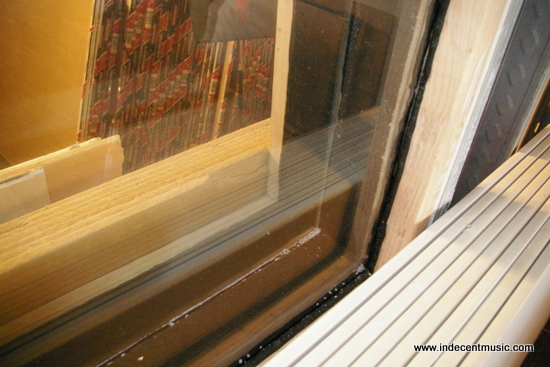

Detail of finished studio window

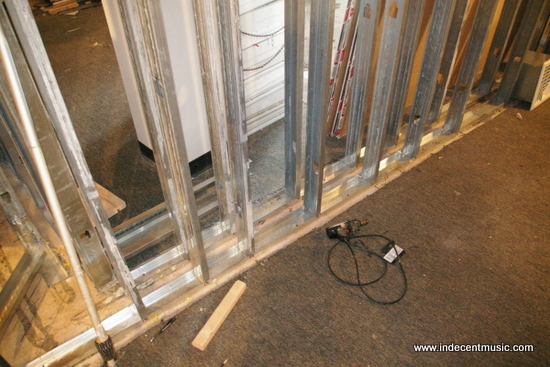

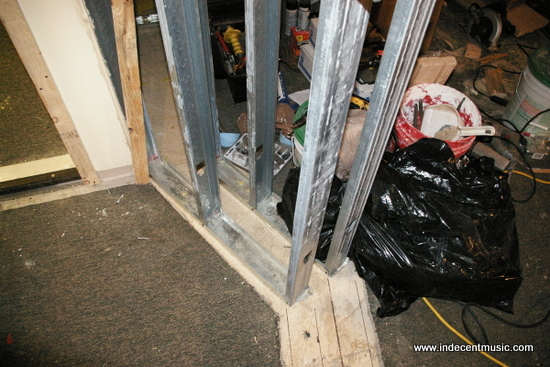

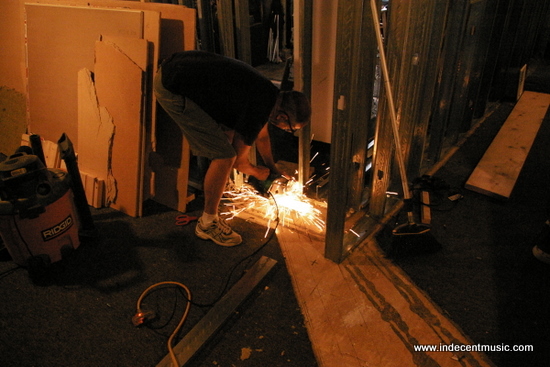

Cutting metal studs makes sparks!

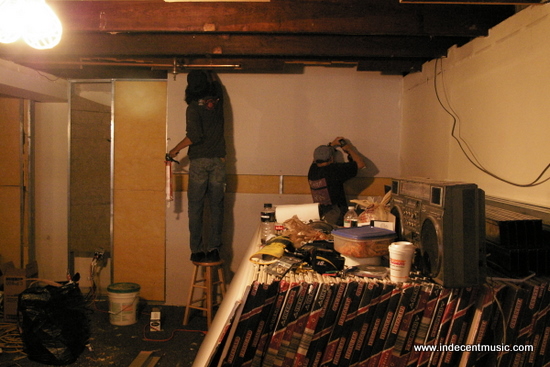

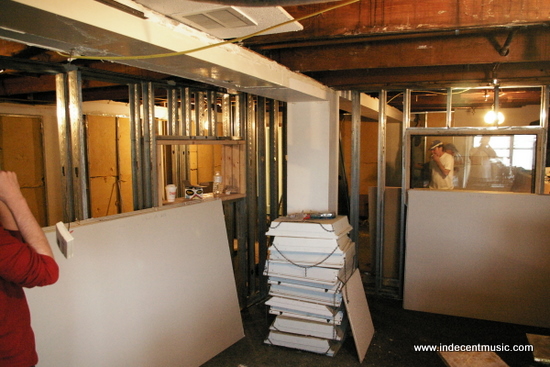

Placing the first piece of gypsum board (from the left: Evan, Robie and Arjun)

Arjun sealing the top edge of the drywall

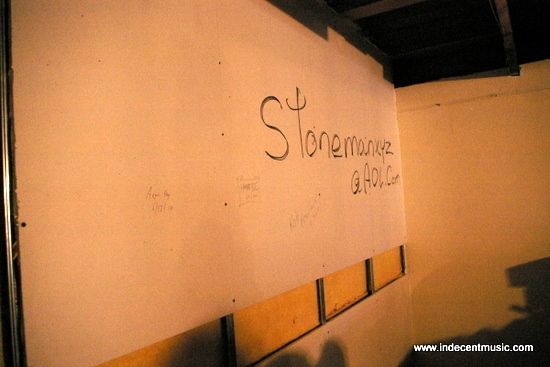

Signatures of the builders on the first drywall

So those are some of the pictures of the progress.  I would love to hear your thoughts!

I was really bummed when my 20-Space Raxxess mobile rack disintegrated on me with all of my most expensive gear in it.  The bottom collapsed and then the whole thing twisted breaking the sides as well.  I was not at all impressed with Raxxess’ design after looking at it closely.  The entire weight of both sides of the rack is held up by 6 metal pins in 3/4 inch particle board.  Not a good design.  So I called Raxxess and they agreed to send me the broken parts after they grilled me about how heavy my equipment was and what I was using it for.  It’s a rack and I put audio gear in it and it broke because the design is bad.  The guys on the phone were pretty snotty, but they did agree to send me the replacement parts and they did it pretty quickly.  Then I thought, “Do you want to put your favorite rack gear in a rack that previously disintegrated?”

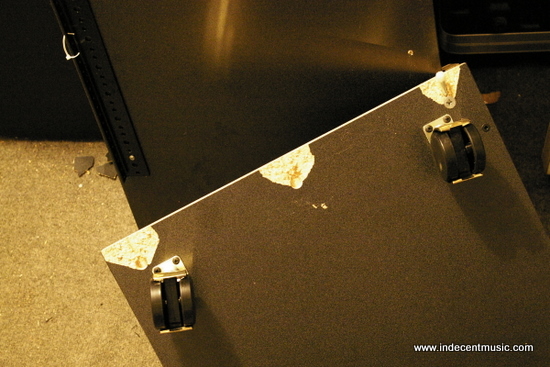

The broken pin holes on the bottom plate of the Raxxess rack

A detail of the broken particle board

So I decided to build a replacement instead.  The new version is MUCH stronger, better designed, has bigger casters and it is generally awesome.  I DIY.  It would have been faster and maybe cheaper just to buy a new crappy rack, but I wouldn’t be very proud of it!

Top Corner of New Rack

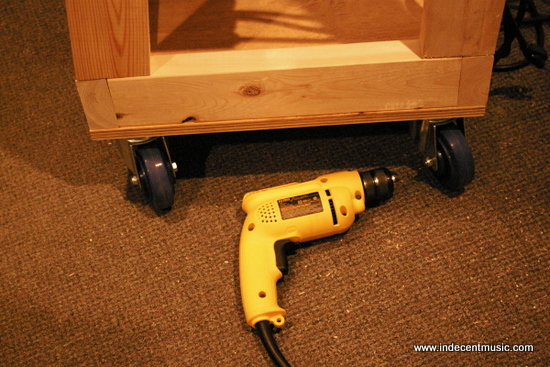

Big Fucking Wheels (For Off-Road Recordin')

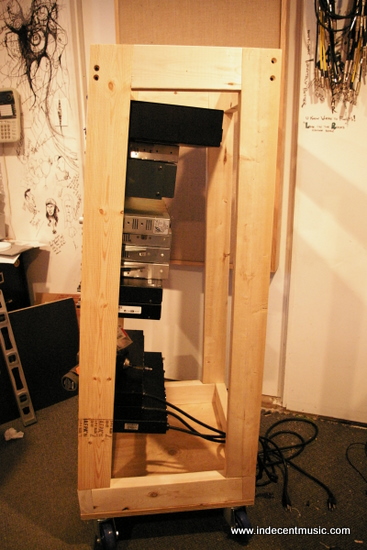

Side View of New Rack

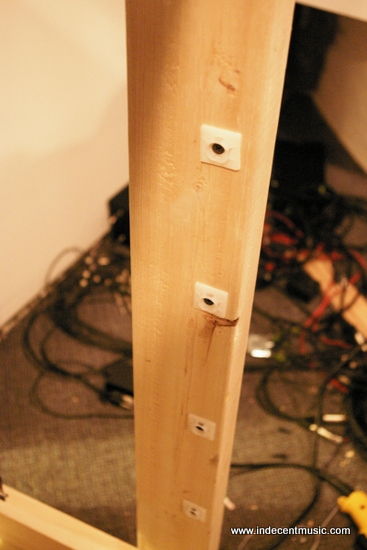

Cable Tie Mounts

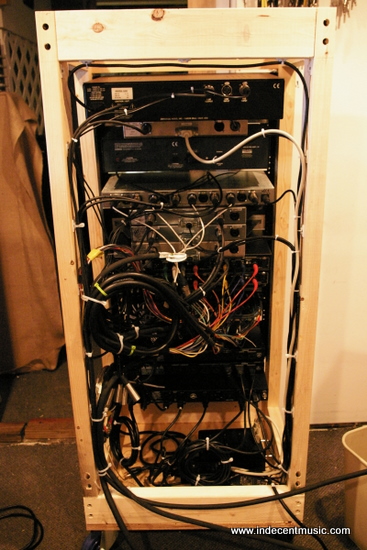

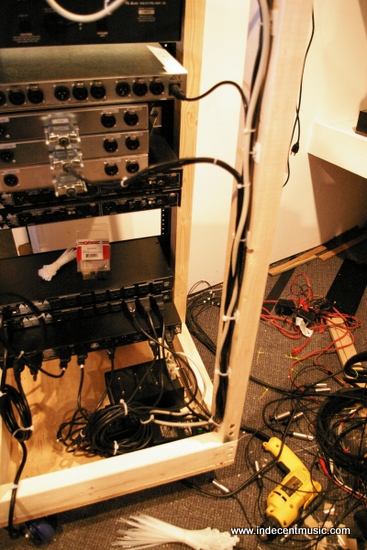

Cable Tied Power Cables Down the Right Rear

Fully Wired Rack with Optional Squirrel's Nest

I would love to see other people homemade audio equipment racks!  This one is probably only going to be loved by me and the family of squirrels that made their home in the back!

What’s Henny Penny?

As many of you already know, I have been recording a new album with Penny Larson on drums and with me on bass.  We’ve decided to call ourselves Henny Penny, because it’s hilarious, it rhymes, it’s the combination of both our names, we think that the story of the sky falling is very poignant during these troubled times [smile], and because we can’t think of anything else that fits.  I have been working with Penny in the studio for a couple of years now on other projects and I have always appreciated her talent as a drummer and as an arranger and composer. We really hit it off in our recording sessions so we started a band. We started playing together in earnest in late summer of 2009 and this January tracked the drums for the dance record.  We are writing new material collaboratively and working on some of my older songs as transformed into dance numbers.

What’s the Dance Album?

When I came to Boston in 1990, I thought that I was going to be a visual artist and that I would study psychology.  I ended up playing bass in a ska band called Thumper.  We had fans that danced and the sheer joy of playing bass for dancers infected me.  That early musical experience really drove my decision to pursue music both academically and in my creative life. Unfortunately I never really had an opportunity to play bass in a dance band again, but I did lay some grooves for about 511 hip-hop instrumentals.  I have just completed my class work for a Sound Recording Technology Master’s at UML and my capstone project is this Dance Album.  I will be exploring toe-tappin’, finger snappin’, tail-feather shakin’, and rug cuttin’ from an academic as well as from a creative perspective.  I want to make people move again.  I have asked a number of friends to lend their talents to the project.

Connor Smith has been playing keyboards and contributing to sound-scapes.
Keith Cornella has been playing some Tele laying down licks and textures.
Tammi Esquivel layed down 21 tracks of vocals and wrote most of the lyrics in Patience
Dayna Brown is developing vocal parts for Just Dance, Light Drowns, Heart & Mind, and some other pieces.

There are a bunch of things that are going to be particularly cool about this record.  It will be my best work to date and tracked with great care, accuracy and attention to quality.  The record is being tracked with the intention of releasing the music in 5.1 surround sound.  This means that there with be 3 speakers in front and to slightly behind the listen, plus a sub woofer for special effects and support of bass frequencies in general.  There will be a stereo release as well, but it probably won’t be as epic or mind bending!

I will try to keep you all updated!

The Project: Drums in 5.1

I am currently working on a recording of music that I have been writing with Penny Larson, the awesome-est drummer ever. We tracked the drums at U. Mass Lowell’s wonderful Rm 114, which is by far the best room I have ever worked in.  Big enough to make great drum sounds with lots of diffusion and enough low frequency absorption to prevent the room from being boomy or rumbly. It’s just totally delicious.

Penny and I first worked together recording Bryan McPherson’s “Fourteen Stories” and then subsequently on Sierra’s EP “Rocks.”

Penny Larson's 8 Piece Drum Set

The record will be released in 5.1 Surround at 24bit 88.2kHz so there is a lot of opportunity to use the 360 degree soundstage to allow the kit to be heard in all of its glory.  There are lot of issues that arise when recording a really large drumset and I will talk a little about these types of issues.

8 Piece Drum Kit from the Front

Problems Micing a Large Kit

More Drums = More Mics = More Problems

As you add microphones to a drum setup, the potential for phasing and bleed problem increases exponentially.  More drums usually means closer together drums, so isolating the drums becomes difficult.  When sounds bleed into unintended microphones the possibility of phase cancellation or other problems increases as well.  Adding to the mix problems are a zillion cymbals that will cause physical problems with mic placement as well as bleeding problems.  Two objects can not be in the same place at the same time.

Microphone Selection and Techniques

Surround Microphones

Although I love recording with omni’s and a Jecklin Disk,  I decided to try something different for this particular drum tracking session.  The Jecklin Disk technique creates a very nice realistic stereo image, but I am not going for realistic in this case.  I want drums that are bigger than life and over-the-top.

Used a variation of spaced cardioids very similar to that used in the Decca-Tree style employed in the Fukada tree.  In this case I chose to use 2 Neumann KM140 Cardioid Small Diaphragm Mics for the left and right speakers and an AKG 414 XLS in Cardioid for the center channel.  I used a pair of Neumann TLM103 for room mics facing into an RPG Schroeder Diffusor away from the drum set.

Front 3 Microphones: Neumann KM140's with AKG 414 XLS in Cardioid in Center

Rear Surround Left Neumann TLM103 toward RPG Diffusor

To recap the surround microphone setup: Left, Center and Right “overheads” are actually in front of the kit to enable better balance between cymbals and drums.  Rear surround large diaphragm cardioids point away from the kit into the corners of the room.

Kick Drums (plural, as in two!)

I have always been a fan of the delicious warm thump produced by micing the front hole in the kick with an AKG D112.  It always provides a great tone, but can lack a little bit in fast transient response and clarity.  I have been using Earthworks TC25’s and SR25’s for the kick and snare drums.  The tiny diaphragms offer a tremendously accurate transient response and can handle very high SPLs.  I use the Kick Pad which ships with the SR25 to pad the mics output and scoop out the middle frequencies to create a great kick sound.  With most double kick players, one drum is the main drum and the other is used for accents and kick fills.

First Kick Drum: AKG D112 and Earthworks TC25

Second Kick Drum: AKG D112 and Earthworks SR25

The Earthworks TC25 is an omni-directional microphone while the SR25 is Cardioid and provides a little bit of isolation with the pickup pattern.  I used the SR25 on the second kick drum and employed the Kick Pad in the signal chain, while I used the TC25 turned off axis on the main kick drum.  The TC25 has a flat response all the way down to earthquake, so I chose it for the main kick drum, while the second drum was happy with the slightly tighter sounding SR25.

Snare Drum

The first secret to a good snare sound is a good drummer and a good snare drum.  For this particular recording Penny brought 5 snares to choose from and I selected the one that sounded the closest to my ideal of the Al Green and Fleetwood Mac snare sounds: excellent attack, white noise snare sound, warm woody tone (sometimes obtained from Brass and Copper drums!), good tonal variation (rim, sidestick, center, flam, rim shot, etc), and a lot of low midrange (150 Hz – 300 Hz).  Again I used a two microphone technique using a traditional snare mic, Sennheiser 421, and an Earthworks TC25 omni.  The 421 provides the traditional proximity effect low mid whap (technical word) while the omni fleshes out the toal tone and timbre of the snare.  I place the omni pointing at the shell of the snare drum so that it picks up both the top and the bottom of the snare.

Snare Drum: Sennheiser 421 Over the Head (Warning: Never Try This Without A Great Pro Drummer

Snare Drum: Sennheiser 421 (View 2) DANGER! Amateur/Intoxicated/Drunk/Average Drummers WILL Destroy Mics in this Position!

Snare Drum: TC25 Pointed at the Shell of the Drum

Toms (All Five of Them!)

There’s really no super secret tracking technique here, just 5 Sennheiser 441’s.  Currently the 441 is my favorite dynamic microphone period.  It has a wonderful pickup pattern rejecting sources to the sides and a very small rear lobe behind the microphone.  The 441 has fantastic tone, a great bump in the lows and low mids from the proximity response and rejects the other toms, drums and cymbals in the vicinity.  The hardest part of micing the toms on Penny’s ginormous kit was getting around the cymbals and other hardware.  Obviously the 441 is a large microphone and this does make it hard to use in tight spaces.

Tom No. 5: Sennheiser 441

Tom No. 4: Sennheiser 441

Tom No. 3: Sennheiser 441

Tom No. 2: Sennheiser 441

Tom No. 1: Sennheiser 441

Notice in the Tom No. 1 photo that I had to use a mic clip from a 421 and LOTS of GAFFER’S TAPE to fashion a mic clip.  Sennheiser makes great sounding microphones but by far the absolute stupidest microphone clips EVER.  EVER.

Flat Ride Cymbal Spot Mic

After doing a few test takes, it became evident Penny’s flat ride cymbal just wasn’t cutting through the rest of the drum kit.  The tone of the flat rides is superb, but they become inaudible with a large or loud kit.  I used an AKG 452 under the cymbal to get it to push through the masking.  Even though the mic is pointing up, the cymbal isolates the mic from the other sounds so phasing wasn’t much of a problem.

Flat Ride Spot Mic: AKG 452

Again, I cannot stress enough how important a great drummer and good drums are to getting the sound of a great kit.  Thanks Penny!

Penny Larson: The Great Drummer in the Center of the Sound

The following is a Facebook exchange that I had with a former student outfitting his new studio.  He raises some great questions about what makes a cable compatible with audio.

JB:
if i were to put an audio snake through 1 1/4 conduit and i were to use cat5 as a temporary cheap(free) way to do this would it work for 16 channels?

The Faderport by Presonus

This week I purchased the Presonus Faderport for use with my DAW, Sonar Producer Edition 8.31.  I have been finding that I really like the immediate control and hand/ear coordination that a real fader provides because I have been working a lot on the API Vision at U. Mass Lowell.  I read a zillion comparisons between the Faderport and Frontier Design’s Alphatrack, a similar single fader automation encoding device. Here’s a very interesting video that compared the speed of the faders on both units.

As you can see from the video, the Faderport’s reaction time is significantly faster than the Alphatrack.  It should be noted that fades as fast as the ones in the video are pretty rare.  For something this fast, most of us would do a mute automation and not a super fast fader move.  The fader on the Faderport is very nice feeling.  It’s quite smooth and although it is a little noisy, it is clearly the highlight of the unit.

The pan knob frankly sucks.  It is a detented pot, so it clicks as you turn it.  There is no specific center detent and in Sonar after you move the pan control the closest you can get to center is +/- 1%.  You also need to rotate the knob completely several times before you get a hard pan left or right.  The pan control is actually more cumbersome than doing fade automation with a mouse.

The instructions for install are really poor.  For individual DAWs you can’t use the included CD-ROM for the installation.  Rather you need to go to the PreSonus website and download a specific driver/plugin for your DAW, but they don’t tell you this in the instructions.  The Sonar driver doesn’t include the feature of being able to program the single user-assigned button with a task and the PROJ button (which is supposed to open the track/edit view in Sonar) doesn’t work at all.  You can open the Mix window and the Transport control, but not the Edit window which is the most commonly used window in Sonar.

It also isn’t clear if you can assign the fader or the pan control to anything other than volume or pan, so you are REALLY limited as to what you can control and automate from the device.  All in all I found the Faderport pretty disappointing and I plan on returning it and getting an Alphatrack.

Here’s the video overview of the PreSonus:

Daking Audio Gear: Mic Pre IV and 3 FET II Compressors

I currently have three of these units in my studio right now and I have had a chance to really put them through their paces.

First, I should say that the sound quality on these units is pristine. There is very little coloration of the sound even when using heavy compression. Many compressors seem to roll off high end when they attenuate heavily, but this is not the case with the FET II. The FET II uses Jensen transformers both in and out of the unit and the pc board is extremely clean and well designed. The FET is in a socket so if it were ever to go bad, it is easy to replace.

The FET II excels at transparent compression and is easily used on bus or program material where lesser compressors really start to sound yucky. The attack times vary between 250 micro seconds to 64 milliseconds and it’s fast enough to be used effectively as a brickwall limiter if desired. The release characteristics are I think what really set the compressor apart though. You have some standard settings of .5 – 1.5 seconds, but also some really nice dual time constant releases designed to mimic some of the nicest compressors in history. The idea behind dual time constant release is this: the compressor releases a little fast at the beginning and then slows down. This effectively eliminates the “pumping and breathing” sounds associated with more abrupt release times.

I have also been able to get some really nice vocal distortion (think Flood’s production techniques) out of it by using the fastest attack and release times and a very high ratio (20:1). Then I drive a very hot signal (over +20) and get a very pretty sounding harmonic distortion very appropriate for alternative rock vocals like NIN, PJ Harvey or Smashing Pumpkins.

I recommend using only XLR cables in and out of the unit, you can use a 1/4″ input but it boosts the signal 14 dB to make up for the -10/+4 difference in operating levels between consumer and pro gear. Another odd thing is the power supply (external, but not a wall wart) uses a DB25 connector which looks pretty weird, but works perfectly well. Just make sure your intern doesn’t try to run the power supply into the DB25 input on an audio interface or multitrack….Bad intern! Bad intern!

You can link two units together to work in stereo with a 1/4″ guitar cable. The sidechaining connection uses DC summing to tell the linked unit when to compress and does not send audio. The FET III does audio summing, but it’s in stereo and is geared more towards working in stereo anyway.

All of the knobs on the unit are switches so you can set two or more compressors exactly the same way and repeat your settings later on. The knobs are really heavy and feel like you’re really working with pro gear.

All in all this is a great compressor with excellent transparent compression that doesn’t color the sounds you are working with. You can use it to chase the waveform to create harmonic distortion with the fastest attack settings to add a little crunch to vocals, bass or drums.

I can’t recommend it more highly.

Just a quick update about our listening room project.  It turns out the New England Institute of Art will not be interested in treating room 112 because the room is being given to the admissions department.  There is currently no information about where the new room will be located.  I have been told that NEIA has recently built a new critical listening space in a different building, but I have not seen the space yet.

So we are on the search for another room to work in!  Please send a note or leave a comment if you think you might know of a good room for us to work in.
Thanks!

Hendrik

At this year’s AES meeting in New York City, the AES Educators took up the topic of how to teach our students to recognize and strive for the highest quality audio possible.  In order for us to teach  techniques to attain the highest audio quality,  students must have access to good listening environments. The traditional concept behind building a great listening room is to build a room which is essentially a studio control room.  Unfortunately this is extremely expensive, usually requires an acoustician and often an architect and is way out of the price range of most learning institutions.   What is needed is a clear set of guidelines to convert existing horrible sounding rooms into adequate critical listening spaces as cheaply as possible.

Gone are the days of the listening party, where people would come together and listen quietly to music together.  But the listening party teaches us a lot about what a listening room should be like.  Here are some ideals that we should strive for in the listening room:

1. As Quiet as Possible
2. As Symmetrical as Possible
3. Use DIY Acoustic Treatment to Control Problems
4. The Best Loudspeakers that Can Be Afforded in Good Positions
5. Use the Creation of a Listening Room to Educate the Students

I teach Audio Technology 2 at the New England Institute of Art in a concrete box, which arguably the worst possible environment to do critical listening in.  If memory serves the dimensions are about 17 x 19 feet with 10 foot ceilings with a drop ceiling at about 8 feet.  I will try to use this room as the guinea pig room to talk about these issues. With any luck, I will get permission and a small budget to improve the room’s acoustics so that it becomes a better environment both for listening and for teaching.

- Hendrik

In the spirit of using my blog as a great way of complaining about the general state of the world I offer the following whine:

Today we have a great many adversaries to high quality audio, some of which I have outlined below:

1. The dominant listening device is an iPod with Apple-made earbuds. (eew!)
2. Most modern music productions are over-compressed so that they sound as loud as the other over-compressed recordings. (grody!) This is usually referred to as The Loudness Wars. (Also check out: The Death of High Fidelity)
3. The second most dominant listening device is the car. (very noisy!)
4. The third most dominant listening device is the craptop computer. (Noooooo!!!!)
